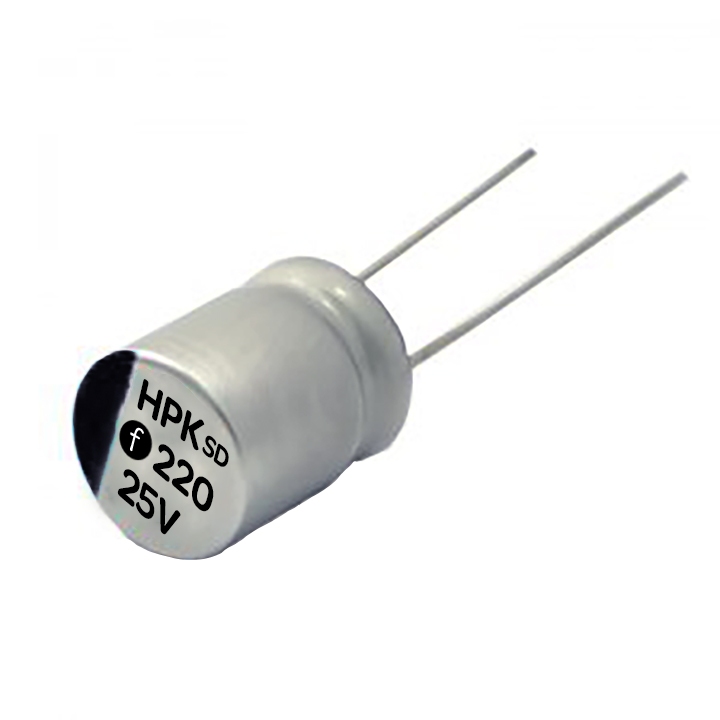

Radial TYPE. Conductive Polymer Hybrid Aluminum Electrolytic Capacitors
High Reliability & High Voltage Realized by Hybrid Electrolyte
Ultra-High Temperature 150℃ 1,000 Hours
HHPK Series
Introduction
General specifications
- Capacitance Range _ 33uF to 270uF
- Rated Working Voltage _ 25Vdc to 63Vdc
- Load Life _ 1,000Hours at 150℃
- Operating Temp. Range _ -55℃ to +150℃
- Capacitance Tolerance _ ±20%
- Packaging_ Bulk, Tape/Box
Part numbering system
Example
| HHPK | 101 | M | 1H | R | B | E | 100 | S | P | 00 |
| ①~④ | ⑤~⑦ | ⑧ | ⑨~⑩ | ⑪ | ⑫ | ⑬ | ⑭~⑯ | ⑰ | ⑱ | ⑲~⑳ |
①~④
| CODE | SERIES |
| HHPK | Ultra-High Temperature 150℃ 1,000 Hours |
⑤~⑦
| CODE | CAPACITANCE |
| 010 | 1.0uF |
| 4R7 | 4.7 uF |
| 101 | 100uF |
| 102 | 1000uF |
⑧
| CODE | TOL. |
| K | ± 10% |
| M | ± 20% |
⑨~⑩
| CODE | W.V. |
| 0E | 2.5V |
| 0G | 4V |
| 0J | 6.3V |
| 1A | 10V |
| 1C | 16V |
| 1D | 20V |
| 1E | 25V |
| 1V | 35V |
| 1H | 50V |
| 1J | 63V |
| 1K | 80V |
| 2A | 100V |
⑪
| CODE | TYPE |
| R | RADIAL/BULK |
| T | TAPE/BOX |
⑫
| CODE | PACKAGE |
| B | BULK |
| S | AMMO PACK (STRAIGHT) |
| C | CUT (SHORT STRAIGHT) |
| M | LEAD FORMED & CUT 5mm |
⑬
| CODE | DIA |
| A | 4∮ |
| B | 5∮ |
| C | 6∮ |
| D | 8∮ |
| E | 10∮ |
⑭~⑯
| CODE | LENGTH |
| 060 | 6mm |
| 077 | 7.7mm |
| 165 | 16.5mm |
⑰
| CODE | PRINTING COLOR |
| S | Black |
| B | Blue |
| R | Red |
⑱
| CODE | RUBBER |
| P | FLAT |
| T | CONVEX |
⑲~⑳
| CODE | LEAD STYLE |
| 00 | STANDARD |
| 01 | NON-STANDARD |
| 30 | CUT 3.0mm |
| 45 | CUT 4.5mm |
| 50 | CUT 5.0mm |
| 1A | CUT 10mm |
| 1B | CUT 12mm |
| 1C | CUT 13mm |
Download
| Name | |
|---|---|
| HHPK Series |  HHPK_20250901.pdf |
| RADIAL Type Precautions | PRECAUTIONS-AND-GUIDELINES_20250901.pdf |
| RADIAL Type Packing Specification | RADIAL-HYBRID-POLYMER-PACKAGING_20250901.pdf |
