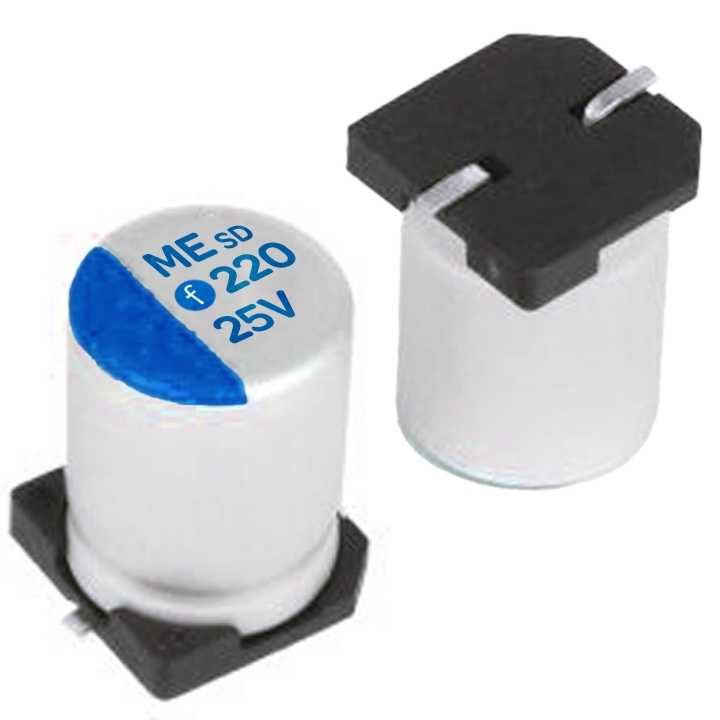

SMD TYPE. Conductive Polymer Aluminum Solid Capacitors
Low ESR & High Ripple Current Capability
Long Life 20,000 Hours
HME Series
Introduction
General specifications
- Capacitance Range _ 10uF to 2700uF
- Rated Working Voltage _ 2.5Vdc to 50Vdc
- Load Life _ 20,000Hours at 105℃
- Operating Temp. Range _ -55℃ to +105℃
- Capacitance Tolerance _ ±20%
- Packaging_ Tape / Reel
Part numbering system
Example
| HME | 221 | M | 1C | C | R | C | 077 | B |
| ①~③ | ④~⑥ | ⑦ | ⑧~⑨ | ⑩ | ⑪ | ⑫ | ⑬~⑮ | ⑯ |
①~③
| CODE | SERIES |
| HME | Long Life 20,000 Hours |
④~⑥
| CODE | CAPACITANCE |
| 010 | 1.0uF |
| 4R7 | 4.7 uF |
| 101 | 100uF |
| 102 | 1000uF |
⑦
| CODE | TOL. |
| K | ± 10% |
| M | ± 20% |
⑧~⑨
| CODE | W.V. |
| 0E | 2.5V |
| 0G | 4V |
| 0J | 6.3V |
| 1A | 10V |
| 1C | 16V |
| 1D | 20V |
| 1E | 25V |
| 1V | 35V |
| 1H | 50V |
| 1J | 63V |
| 1K | 80V |
| 2A | 100V |
⑩
| CODE | TYPE |
| C | SMD (V-CHIP) |
⑪
| CODE | PACKAGE |
| R | TAPE/REEL |
⑫
| CODE | DIA |
| A | 4∮ |
| B | 5∮ |
| C | 6∮ |
| D | 8∮ |
| E | 10∮ |
⑬~⑮
| CODE | LENGTH |
| 060 | 6mm |
| 077 | 7.7mm |
| 165 | 16.5mm |
⑯
| CODE | PRINTING COLOR |
| S | Black |
| B | Blue |
| R | Red |
