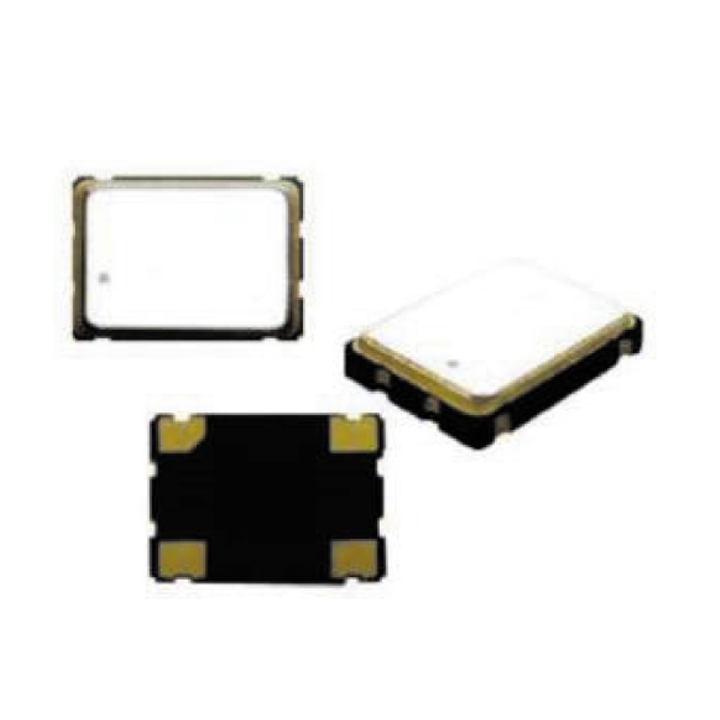

HQCO Series
Part numbering system
Example
| HQCO | A | 1M84 | - | 1V8 | A | 2 |
| ①~④ | ⑤ | ⑥~⑨ | ⑩ | ⑪~⑬ | ⑭ | ⑮ |
①~④
| CODE | SERIES |
| HQCO | SMD / MHz BAND CRYSTAL OSCILLATORS |
⑤
| CODE | PACKAGE NAMING | |
| A | 7050 | 7.0X5.0-4 |
| B | 5032 | 5.0X3.2-4 |
| C | 3225 | 3.2X2.5-4 |
| D | 2520 | 2.5-2.0X4 |
| E | 2016 | 2.0X1.6-4 |
⑥~⑨
| CODE | FREQUENCY(MHz) |
| 1M84 | 1.843200 |
| 3M57 | 3.579545 |
| 4M00 | 4.000000 |
| 4M19 | 4.194304 |
| 4M43 | 4.433619 |
| 6M00 | 6.000000 |
| 7M37 | 7.372800 |
| 8M00 | 8.000000 |
| 8M19 | 8.192000 |
| 9M83 | 9.830400 |
| 10M0 | 10.000000 |
| 11M0 | 11.059200 |
| 12M0 | 12.000000 |
| 12M2 | 12.288000 |
| 14M3 | 14.318180 |
| 15M3 | 15.360000 |
| 16M0 | 16.000000 |
| 16M9 | 16.934400 |
| 19M2 | 19.200000 |
| 20M0 | 20.000000 |
| 22M1 | 22.118400 |
| 24M0 | 24.000000 |
| 24M5 | 24.576000 |
| 25M0 | 25.000000 |
| 26M0 | 26.000000 |
| 27M0 | 27.000000 |
| 27M1 | 27.120000 |
| 28M2 | 28.224000 |
| 29M1 | 29.120000 |
| 30M0 | 30.000000 |
| 32M0 | 32.000000 |
| 36M0 | 36.000000 |
| 36M8 | 36.864000 |
| 38M4 | 38.400000 |
| 40M0 | 40.000000 |
| 48M0 | 48.000000 |
| 50M0 | 50.000000 |
| 60M0 | 60.000000 |
| 76M8 | 76.800000 |
| 80M0 | 80.000000 |
| 96M0 | 96.000000 |
| 100M | 100.000000 |
⑩
| CODE | |
| - |
⑪~⑬
| CODE | SUPPLY VOLTAGE(V) |
| 1V8 | 1.8 |
| 2V5 | 2.5 |
| 2V8 | 2.8 |
| 3V0 | 3 |
| 3V3 | 3.3 |
| 5V0 | 5 |
⑭
| CODE | OPERATING TEMPERATURE RANGE(°C) |
| A | -20~70 |
| B | -40~85 |
| C | -40~105 |
| D | -40~125 |
| E | -30~85 |
⑮
| CODE | FREQUENCY STABILITY(±PPM) |
| 2 | 20 |
| D | 25 |
| 3 | 30 |
| E | 50 |
Download
| Name | |
|---|---|
| HQCO Series |  HQCO_20251001.pdf |
