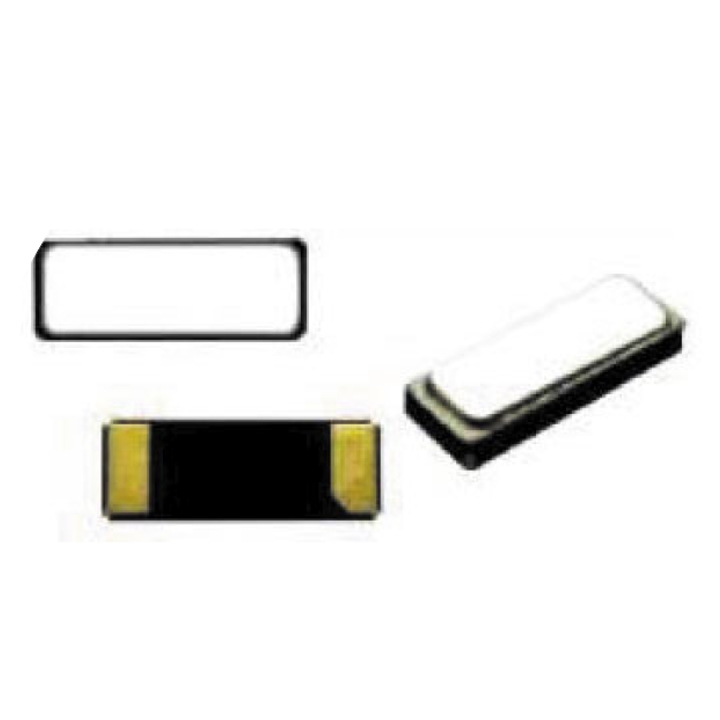

HSQCX Series
Part numbering system
Example
| HSQCX | A | 32K7 | A | 70K | B | A |
| ①~⑤ | ⑥ | ⑦~⑩ | ⑪ | ⑫~⑭ | ⑮ | ⑯ |
①~⑤
| CODE | SERIES |
| HSQCX | SMD / KHz BAND |
⑥
| CODE | PACKAGE NAMING | |
| A | C3215 | 3.2X1.5 |
| B | C2012 | 2.0X1.2 |
| C | C1610 | 1.6X1.0 |
⑦~⑩
| CODE | FREQUENCY(KHz) |
| 32K7 | 32.768 |
⑪
| CODE | LOAD CAPACITANCE(pF) |
| A | 6 |
| B | 7 |
| E | 9 |
| J | 12.5 |
⑫~⑭
| CODE | RESISTANCE(ESR)KΩ |
| 70K | 70KΩ |
⑮
| CODE | FREQUENCY TOLERANCE(±PPM)25°C |
| B | 10 |
| 2 | 20 |
⑯
| CODE | OPERATING TEMPERATURE RANGE(°C) |
| A | -20~70 |
| B | -40~85 |
| C | -40~105 |
| D | -40~125 |
| E | -30~85 |
Download
| Name | |
|---|---|
| HSQCX Series |  HSQCX_20251001.pdf |
