RoHS / Halogen-Free (HF) compliant
Operating temperature range : -40℃~+125℃
Wide resistance range
Agency recognition : UL/ TUV

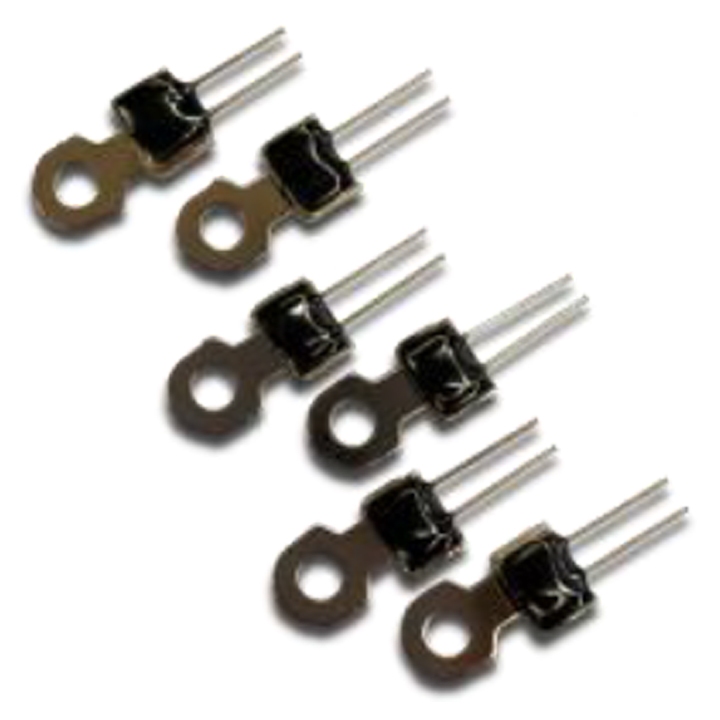

JAT series
Features
Applications
- Home appliances
- Office automation
- Switch mode power supplies
- Adapters
- Security
Part numbering system
Example
| JAT | 103 | F | 344 | F | B | 5 | 2 | 00103X |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ |
①
| Code | Series |
| JAT | Product Type |
②
| Code | Zero Power Resistance @25℃(R25) |
| 502 | 5KΩ |
| 103 | 10KΩ |
| 474 | 470KΩ |
③
| Code | Tolerance of R25 |
| F | ±1% |
| G | ±2% |
| H | ±3% |
| J | ±5% |
| K | ±10% |
④
| Code | B Value |
| 344 | 3435K |
| 405 | 4050K |
⑤
| Code | Tolerance of B Value |
| F | ±1% |
| G | ±2% |
| H | ±3% |
| J | ±5% |
⑥
| Code | Definition of B Value |
| A | 25/50 |
| B | 25/85 |
⑦
| Code | Lead Diameter |
| 5 | 0.5mm |
⑧
| Code | Lead Spacing |
| 2 | 2.5mm |
| 4 | 3.5mm |
⑨
| Code | Optional Suffix |
| - | Internal Contro Codel |
