RoHS / Halogen-Free (HF) compliant
Accuracy
Operating temperature range : -40℃~+105℃
Wide resistance range
Agency recognition : UL/ TUV

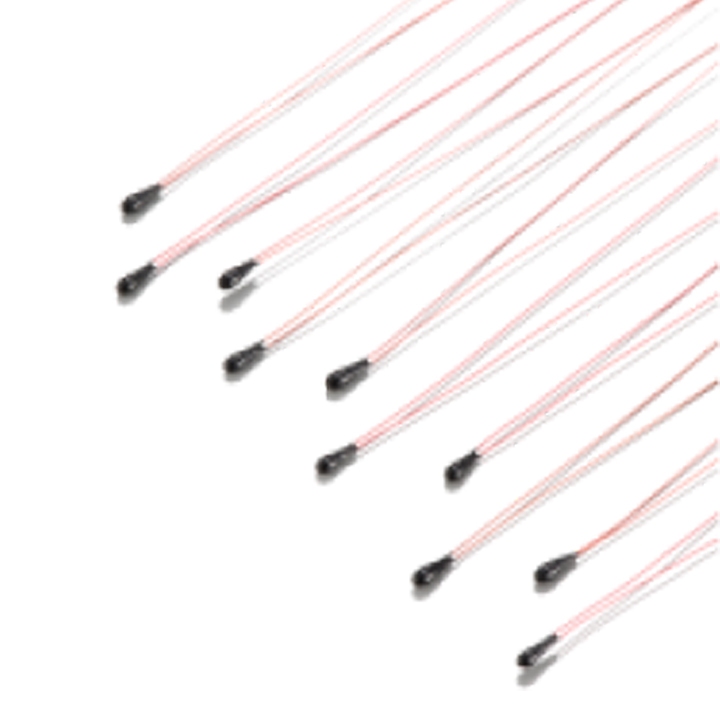

JTD series
Features
Applications
- Home appliances
- Mobile devices
- Battery packs
- Body thermometers
Part numbering system
Example
| JTD | 103 | F | 344 | F | B | 12 | 087 | N | X | XX |
| ①~③ | ④~⑥ | ⑦ | ⑧~⑩ | ⑪ | ⑫ | ⑬~⑭ | ⑮~⑰ | ⑱ | ⑲ | ⑳~㉑ |
①~③
| Code | Series |
| JTD | Product Type |
④~⑥
| Code | Zero Power Resistance @25℃(R25) |
| 103 | 10KΩ |
| 503 | 50KΩ |
| 104 | 100KΩ |
⑦
| Code | Tolerance of R25 |
| F | ±1% |
| G | ±2% |
⑧~⑩
| Code | B Value |
| 344 | 3435K |
| 398 | 3980K |
⑪
| Code | Tolerance of B Value |
| F | ±1% |
| G | ±2% |
⑫
| Code | Definition of B Value |
| A | 25/50 |
| B | 25/85 |
⑬~⑭
| Code | Lead Diameter |
| 12 | ∮0.12mm Enameled wire |
| 26 | ∮0.26mm Enameled wire |
⑮~⑰
| Code | Lead Length |
| 025 | 25mm |
| 087 | 87mm |
⑱
| Code | Coating Type |
| N | Black Resin |
⑲
| Code | Soldered Length |
| X | 3.0 ± 1mm |
| M | 2.5 ± 1mm |
⑳~㉑
| Code | Optional Suffix |
| - | Internal Control Code |
Download
| Name | |
|---|---|
| JTD series |  JTD_20251201.pdf |
| Temperature compensation and Temperature measurement | TEMPERATURE-COMPENSATION-AND-TEMPERATURE-MEASUREMENT_20251201.pdf |
