A polymeric positive temperature coefficient device (PPTC, commonly known as a resettable fuse, poly fuse or poly switch) is a passive electronic component used to protect against over current faults in electronic circuits.

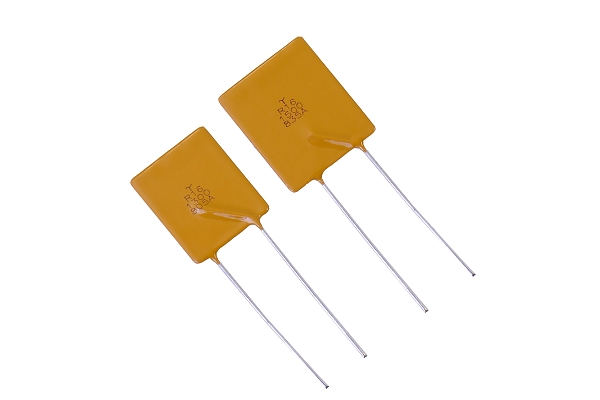

RDL16V
Introduction
General specifications
- Voltage: 16Vdc
- Hold Current_0.7Amp to 15.0Amp
- Trip Current_1.4Amp to 25.5Amp
- Initial resistance_0.002Ωto 0.13Ω
- Max. Power Dissipation_0.60Watt to 4.80 Watt
Part numbering system
Example
| RDL | 16V | 010 |
| ①~③ | ④~⑥ | ⑦~⑨ |
①~③
| Code | Series |
| RDL | Radial Lead Type |
④~⑥
| Code | Max Voltage |
| 16V | 16V |
⑦~⑨
| Code | Hold Current (A) |
| 010 | 0.10 Amps |
| 160 | 1.60 Amps |
| 375 | 3.75 Amps |
Download
| Name | |
|---|---|
| RDL16V |  RDL16V_20231226.pdf |
