- High power rating and low TCR.
- Low resistance and high precision.
- Low inductance less than 1.0nH.
- Suitable for lead free soldering.
- Compatible with wave and reflow soldering.
- RoHS & REACH compliant, Halogen Free.

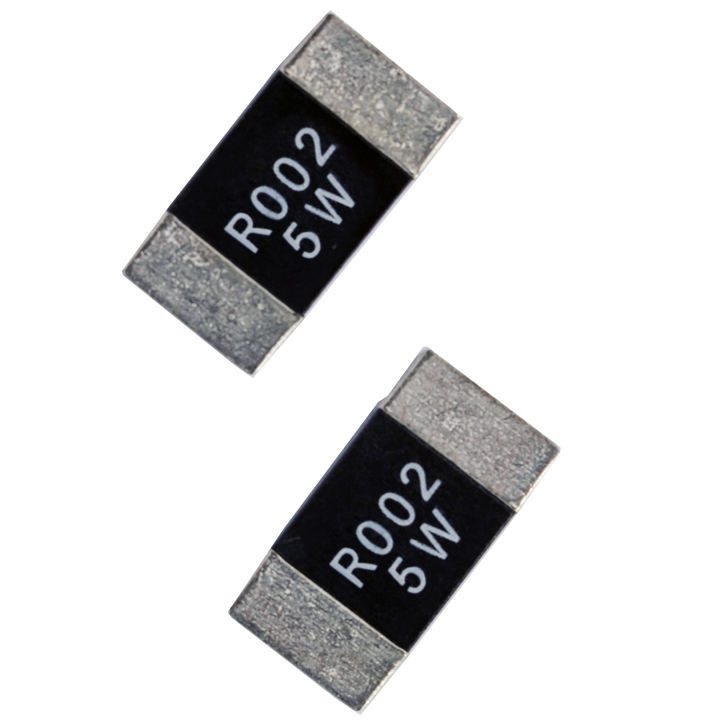

HCS
Introduction
General specifications
- Size _ 0805 to 5931
- Resistance Range _2mΩ to 50mΩ
- Max. Working Voltage_71mV to 158mV
- Max. Overload Voltage_158mV to 354mV
- Rated Power ＠70℃ _1/4W to 5W
- Resistance Tolerance_±1%, ±5%
- Temp. Coefficient_±70ppm/℃ to ±100ppm/℃
Part numbering system
Example
| HCS | 2512 | F | P | H | 10R |
| ①~③ | ④~⑦ | ⑧ | ⑨ | ⑩ | ⑪~⑬ |
①~③
| Code | Type |
| HCS | Metal strip current sensing |
④~⑦
| Code | Size |
| 0805 | |
| 1206 | |
| 2512 | |
| 5931 |
⑧
| Code | Tol. |
| F | ±1% |
| J | ±5% |
⑨
| Code | Package |
| P | Paper Tape |
| K | Plastic Tape |
| Q | Plastic Tape |
| for 5931size |
⑩
| Code | POWER |
| - | Standard Type |
| H | High Power |
⑪~⑬
| Code | Resistance |
| R001 | 0.001Ω |
| 0R01 | 0.01Ω |
Download
| Name | |
|---|---|
| HCS SERIES |  HCS_20230411.pdf |
