● Glass passivated chip
● 600 W peak pulse power capability with a 10/1000
us waveform, repetitive rate (duty cycle):0.01 %
● Excellent clamping capability
● Low reverse leakage
● Very fast response time
● Lead and body according with RoHS standard

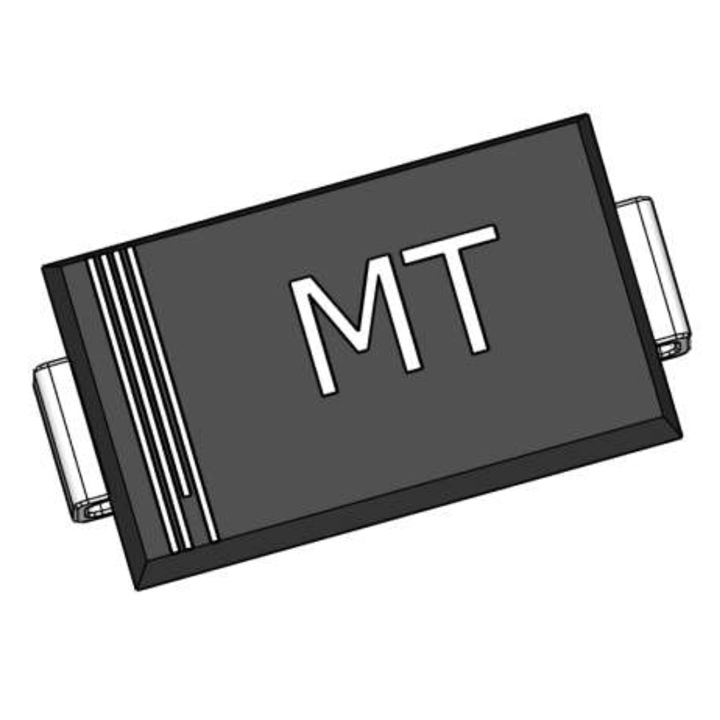

• Case: DO214AA/(SMB) Molded plastic
• Lead: Solderable per MIL-STD-750, method 2026
• Epoxy: UL 94V-0 rate flame retardant
• System: Accreditation through IATF16949 System
• High reliability grade (AEC Q101 qualified)
• Mounting position: Any
