- High density packaging provides higher productivity.
- Stable convex and concave terminal reduce assembly cost.
- Suitable for lead free soldering.
- Compatible with wave and reflow soldering.
- RoHS & REACH compliant, Halogen Free.

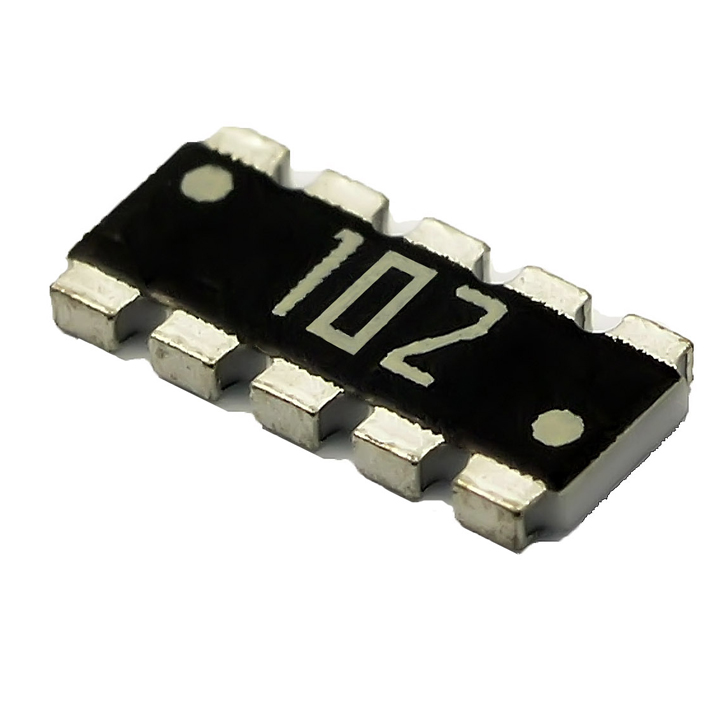

HYC/HTC
Introduction
General specifications
- Circuit_ Isolated, Dual Common
- Resistance Range _0R, 10Ω to 1MΩ
- Max. Working Voltage_25Vdc to 50Vdc
- Max. Overload Voltage_50Vdc to 100Vdc
- Rated Power ＠70℃ _1/16W
- Resistance Tolerance_±1%, ±5%
- Temp. Coefficient_±200ppm/℃, ±300ppm/℃
Part numbering system
Example
| HYC | 124 | F | R | 4K7 |
| ①~③ | ④~⑥ | ⑦ | ⑧ | ⑨~⑪ |
①~③
| Code | Type |
| HYC | Convex |
| HTC | Concave |
④~⑥
| Code | Size |
| 122 | 0402*2 |
| 124 | 0402*4 |
| 164 | 0603*4 |
| 158 | 10P8R |
| 248 | 16P8R |
⑦
| Code | Tol. |
| F | ±1% |
| J | ±5% |
⑧
| Code | Package |
| R | Paper Tape |
⑨~⑪
| Code | Resistance |
| 10R | 10Ω |
| 470R | 470Ω |
| 1KR | 1000Ω |
| 10KR | 10000Ω |
| 1MR | 1MΩ |
Download
| Name | |
|---|---|
| HYC/HTC SERIES |  HYC-HTC_20231006.pdf |
