PEI

Introduction

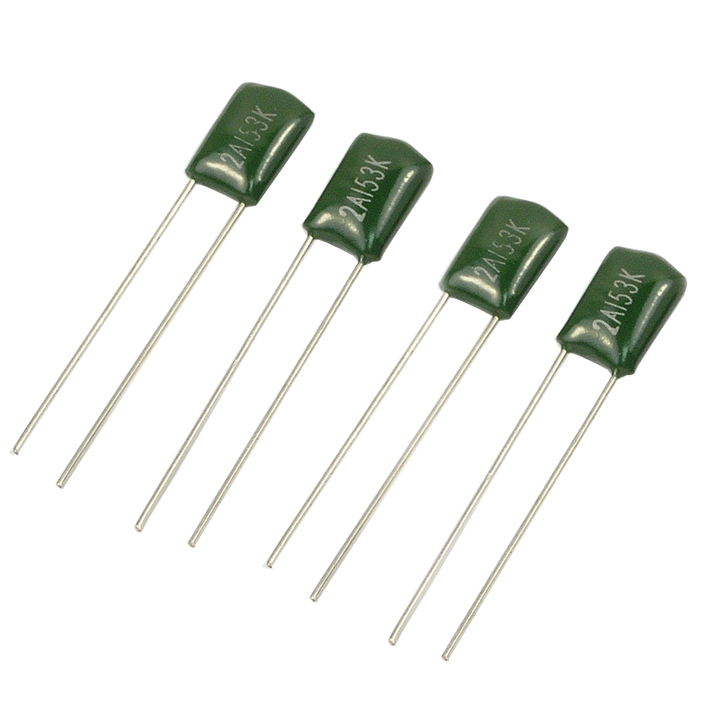

PEI series are inductive welded construction epoxy resin coated.

General specifications

  • Capacitance Range _ 1.0nF to 0.47uF
  • Rated Working Voltage_100Vdc to 630Vdc
  • Operating Temp. Range_-40℃ to +85℃
  • Capacitance Tolerance _ ±5%, ±10%
  • Packaging_ Bulk, Tape / Box

Part numbering system

Example

PEI104K2ABA
①~③④~⑥⑧~⑨

①~③

CodeSeries
PEI

④~⑥

CodeCapacitance
3320.0033uF
1040.1 uF
4740.47uF

CodeTOL.
J± 5%
K±10%
M±20%

⑧~⑨

CodeW.V.
1H50V
1J63V
2A100V
2E250V
2G400V
2J630V

CodePackage // Lead Style
BBulk
AT/BOX
RT/REEL
F55mm Lead Space After Forming
CLead Cut

CodeExtra Code for Size & Pitch & Lead length
ASmaller Size
Omit if one size
T55mm Pitch On Tape
T7.57.5mm Pitch On Tape
55mm Lead Length After Cut

Download

Name PDF
PEI SERIES PEI_20140717.pdf
